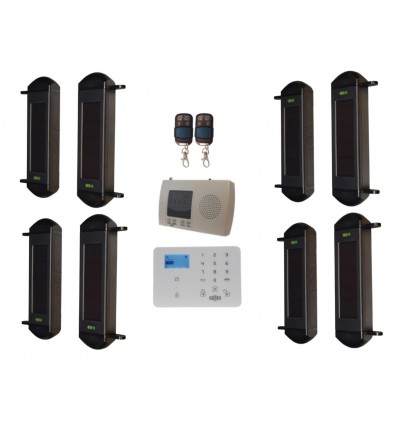

This Wireless DA600+ Perimeter Alarm System is supplied with the following parts (but can also be expanded in many ways to suit different applications):

4 x sets of Long Range Solar Powered 1B Beams.
1 x Wireless Receiver.
1 x KP9 3G GSM Auto-Dialler (with remote controls).

Compatible with all DA600+ Products !!

A complete Perimeter Alarm System to help you Monitor & Secure your Home & Business, ideal for DIY Installation (but can be expanded even more if required).

How it Works:

The 4 x sets of Beams are mounted to cover your Perimeter or vulnerable parts of your Perimeter, the Receiver & Dialler are normally located inside your Home or Office.

If a person or vehicle passes through any of the Beams when the Dialler is Armed, the Internal Receiver will Chime, the Dialler will activate a built in Siren and start to contact Key-holders by Phone & Text.

Wireless Beams:

These impressive Solar Powered Wireless Perimeter Beams (often called laser beams) are packed with impressive features listed below:

Battery Powered with Built in Solar Charging: (making for easy installation).
Dual Detection Technology: (prevents false alarms from small animals and moving debris).
Up to 100 metre Detection: (can be used closer).
Impressive 900 metre Wireless Range (can be doubled by adding a signal repeater).
Quality Build.
Supplied with Wall & Pole Mounting Brackets.
Test Display & Eye Sighting: (for aid installation).
Top up charging Ports.
Option Test Beep (which can be silenced).

The Dual Detection Technology works by having a pair of Detectors (set 60 mm apart from each other) on each Beam, both Detectors have to be breached simultaneously to create an activation, allowing small animals, insects, leaves & debris to safely pass by.

They also have an additional Charging Port which can be used to give the Beams a boost charge should you experience a lengthy duration of low sun light, or perhaps one of the beams needs to be fitted into a slightly covered location. You can also add an separate Solar Panel on any given Beam if it helps the charging or positioning options.

They are very easy to install as they have a display screen and a sighting lens to help installation.

You can use up to 128 sets of Beams with this Receiver & 32 sets should you decide to add a Solar Wireless Siren (part number 004-2810).

Operating Range:

The Wireless operating range between the Beams & Receivers is 900 metres (line of sight) which can be doubled by using the signal repeater (part number 004-2910).

Receiver:

The 4-channel Receiver would be connected to the GSM Dialler by a short length of cable (supplied), and is powered by a standard 3-pin Plug in Transformer, it has the following features:

Built in Chime (with adjustable volume from zero to 80 decibel).
4 x Adjustable Dry Relay N/O or N/C Outputs (often used to trigger auto-diallers, timer relays).
Adjustable 12v DC Outputs (often used with sirens & flashing lights).
ON/OFF Switch.
5 minute Exit Delay (using the remote controls or receiver).
4 x Channels with a Different Chime & LED (each channel can be paired to up to 32 sets of Beams or other Sensors).
Optional Reminder Bleeps.
Exit Delay Option.

KP9 GSM Auto-Dialler:

The KP9 3G GSM Auto-Dialler which is connected to the Wireless Receiver and communicates through mobile phone networks, a standard sized SIM Card needs to be fitted (not supplied), you can use either PAYG or Contract.

The Dialler operates on the mobile phone networks and is packed full of features normally only associated with much more expensive systems including:

3G Model.
Contacts up to 9 x Key-holders by Telephone & Text Message (optional).
Built in Siren (adjustable duration from 1 to 999 seconds).
Simple Plug in Power Supply with Back up Battery.
Transformer Rating: 12v DC 1 amp.
Can be used with a Wireless Sirens (H/Duty).
Easy to Program (using the built in keypad and LCD Screen or APP).
Easy to Operate using:
- Remote Controls (2 supplied but more can be added).
- Built in Keypad.
- Built in Timer.
- Text Message.
- APP.
Many Modes of Operation including:
- Full Arm.
- Home Arm.
- Entrance.
- On Site.
- Outer.
- Inner.
- 24 Hour (with Siren).
- 24 Hour (silent).
2 x Wired Input Zones.
95 x Wireless Zones.
Built in Power Failure (optional).
Built in Temperature (optional).
2 x way Communication.
Log (history) Logging.
Low Battery Warning (of accessories).
Optional APP (iOS or Android).
12 Language Menu (including English, French, German, Italian, Dutch & Spanish).

The secret to using a GSM Auto-Dialler with a Perimeter Alarm is to use the Dialler as the brains of the system, if the Dialler is Armed the Alarm is ON, if Disarmed the Alarm is OFF (although you can still choose to use a chime on the wireless receiver which is a very handy alert).

The Dialler can be Armed & Disarmed by the following methods:

Built in Keypad.
Remote Control.
Text Message.
Built in Timer.
APP.

The GSM Control Panel can also in different ways helping you a return on the investment, examples below:

Wireless Internal Burglar Alarm.
Wireless Smoke Alarm.
Temperature Monitor.
Power Failure Monitor.
Door Bell.
2-way Communication.
Water & Flood Monitor.

You can add many additional accessories to this Perimeter Alarm system to suit your application including:

Additional Perimeter Beams (4 x sizes).
Window Beams (2 x sizes).
PIR's & Door Contacts.
Smoke Detectors.
External Wired & Wireless Sirens.
Internal Sirens & Buzzers.
Speech Alerts.
Relays (for lighting).
Flashing Lights.

*You can use up to 128 sets of Wireless Detectors with this single Alarm System*

If you require advice when building your system, please contact us for Friendly, No Obligation Advice !!
