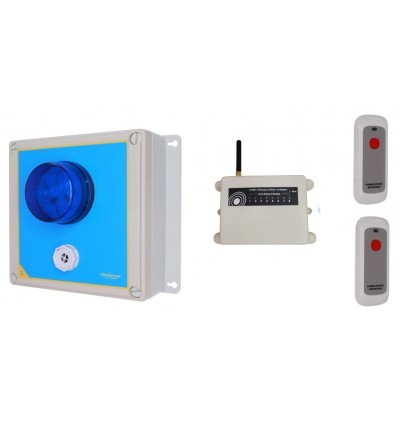

Extra Long Range 1800 metre Wireless Panic Alarm Kit

Extra long range 1800 metre wireless 'S' range panic DA600+ alarm with a portable panic button

Reference: 009-3750-00

Extra Long Range (1800 metre) 'S' Range DA600+ Wireless Panic & Lockdown Alarm System supplied with a latching adjustable Siren & Blue Flashing Strobe, Wireless Signal Repeater, Wireless Portable SOS Button & Wireless Reset Button.

742,28 € inc. VAT

In stock Pre-order: expected Out of stock

Order now and we will send it as soon as it is back in stock.

This item cannot be ordered at the moment. Ask us and we will tell you when it is back or suggest an alternative.

Ask about availability

Quantity discounts

QuantityUnit priceYou save

Not sure it's the right kit for your need?

Free advice from our security specialists: we help you choose, set up and install.

Ask about this product

Description

Extra Long Range (1800 metre) 'S' Range DA600+ Wireless Panic & Lockdown Alarm System supplied with:

Compatible with all DA600+ products !!

The transmission range from the SOS Button to the Signal Repeater is an impressive 900 metres (line of sight) which equates to around 400 - 600 metres in most applications, the range from the Signal Repeater to the Wireless Siren is a further 900 metres (line of sight), this can be extended even further by adding another Signal Repeater (004-2910).

Portable Panic Button:

The Portable Panic Button & Reset Button are supplied with wall holders for storage when they are not needed to be moved to different locations, we can also offer a Lanyard to allow it to be worn around the neck.

Some customers will simply keep the button sitting inside the wall bracket for most occasions.



How it Works:

If the Portable Panic Button is pressed, the Siren & Flashing Strobe will activate and remain Latched ON until the Portable Reset Button is pressed (the reset buttons would be hidden or locked away).

The unique Built in Siren has 32 available Tones together with Volume Control allowing you to utilize the Control Box for your individual requirements.

The Siren Assembly is powered by a plug in transformer, which can be connected into a fused spur (recommended), we also offer the option of including a Back Up Power Supply for applications wanting to ensure the system works throughout a Power Cut (the Siren would then change to a surface mounted model from a recess model due to available room within the housing box, see image below).

Surface & Flush Mounting Sirens

Installation:

These Wireless Panic & Lockdown Alarms are designed for easy installation, they will be fully prepare before despatch, all the customer needs to do is:

  • Mount the Control Box (handy lugs for easy & quick fitting).
  • Power the Control Box (3-pin wall plug or cable for a fused spur).
  • Choose the Siren Tone & Volume (simple and quick adjustments).
  • Mount the Signal Repeater & Plug the power supply into a 3-pin socket).
  • Mount the Portable Panic Button Wall Bracket.
  • Press the SOS Button to Test the Siren & Flashing Strobe.
  • Press the Reset Button to Disarm.

Additional Siren Boxes:

You can add as many Siren Control Boxes to your System as required (no limit), each one can be adjusted to suit the exact location of its installation, you may wish to have some a very with low volume and a flashing LED whilst others set to be loud.

It is also possible to connect a wired Siren & Flashing Strobe Boxes to each Wireless Siren Box for applications where rooms may be back to back.

Additional SOS Buttons:

You can add additional Wireless SOS Buttons to suit your application.

Additional Reset Buttons:

You can add further Reset Buttons to suit your application.

Signal Repeater:

The signal Repeater would normally be fitted around halfway between the location of the Panic Button & Siren assembly (although this can vary depending on the nature of the building) and is powered by a standard 3-pin Transformer (2-pin or a model suitable for fitting into a fused spur available upon request).

Additional Accessories:

There are other types of Transmitters that can be added to this Wireless Panic & Lockdown Alarm, these include:

  • 900 metre Single Push Button (006-2200).
  • 900 metre Single Push Button & Lanyard (006-2220).
  • 900 metre Double Push Button (006-2210).
  • 900 metre Double Push Button & Lanyard (006-2230).
  • 300 metre Under Desk Button (004-2940).
  • 900 metre Large Red SOS Wireless Push Buttons.
  • 900 metre Large Red Lockdown Wireless Push Buttons.
  • 900 metre Large Red Help Wireless Push Buttons.
  • 900 metre Large Red Assistance Wireless Push Buttons.
  • 900 metre Please Ring Wireless Push Button Assembly (006-2800).
  • 1B - 2B - 3B Perimeter Beams.
  • 900 metre & 600 metre PIR's.
  • Internal Curtain & Standard PIR's.

Advice:

Please Contact for Advice !!

What's in the box

7 items
  • 1×'S' Type Wireless Receiver
  • 1×Latching Adjustable Siren
  • 1×Flashing Blue LED
  • 1×Mounting Box
  • 1×Wireless S Range Portable Panic Button
  • 1×Wireless Portable Reset Button
  • 1×Wireless Signal Repeater

Specifications

35 details

Wireless siren assembly

Size
225 x 190 x 67 mm (not including Strobe)
Box material
Plastic
Box mounting method
Handy Mounting Lugs with Pre-drilled Holes
Wireless operating range
300 - 900 metres - line of sight (depending on the chosen transmitter)
Repeater option
Yes (available as an optional option)
Siren
Adjustable in Tone (32 options) & Volume Control
Volume level
1 06 Decibel to Zero
Receiver
'S' Type
Flashing strobe
Blue
Duration of siren & flashing strobe LED
Latches ON (until reset)
Power supply
Plug in 3-pin Transformer (can be used with spur socket), 2-pin available upon request
Backup battery
No (available as an optional option)
Weatherproof
Yes

Portable panic button

Wireless range
900 metres (line of sight)
Power supply
1 x MN21 12v Battery
Push buttons
One
Frequency
433 Mhz
Size
90 x 40 x 15mm
Colour
White, Grey & Red Button
Optional cable connection
Yes
Wall bracket
Yes
Portable
Yes

Wireless reset button

Wireless range
900 metres (line of sight)
Power supply
1 x MN21 12v Battery
Push buttons
One
Frequency
433 Mhz
Size
90 x 40 x 15mm
Colour
White, Grey & Red Button
Optional cable connection
Yes
Wall bracket
Yes
Portable
Yes

Wireless signal repeater

Wireless range
An additional 900 metres (line of sight)
Power supply
Plug in 3-pin Transformer (2-pin available)
Frequency
433 Mhz
Size
160 (w) x 160 (h) including Aerial x 55 (d) mm
