Long Range Wireless Panic Alarm (activity centre special)

Long range (900 metre) wireless 'S range' DA600+ panic alarm (activity centre special)

Reference: 009-3800-00

Long Range (900 metre) Wireless DA600+ Panic Alarm ideal for applications such as Swimming Pools, Gyms and other workplaces, popular with trades as they can add there value with professional & clean installation.

360,08 € inc. VAT

In stock Pre-order: expected Out of stock

Order now and we will send it as soon as it is back in stock.

This item cannot be ordered at the moment. Ask us and we will tell you when it is back or suggest an alternative.

Ask about availability

Quantity discounts

QuantityUnit priceYou save

Not sure it's the right kit for your need?

Free advice from our security specialists: we help you choose, set up and install.

Ask about this product

Description

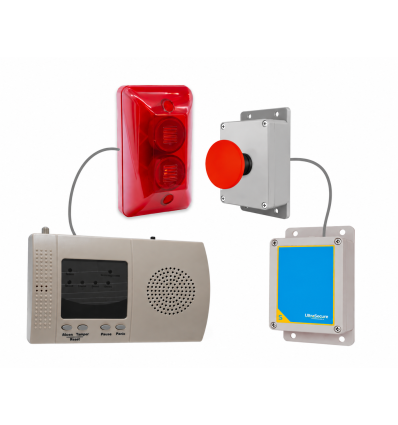

Long Range (900 metre) 'S Range' DA600+ Wireless Panic Alarm ideal for applications such as Swimming Pools, Gyms and other workplaces, popular with trades as they can add there value with professional & clean installation, the kit includes:

  • Large IP Rated Push Button (IP66).
  • Battery Powered Wireless Transmitter inside an IP rated Mounting Box.
  • Plug in Wireless Receiver.
  • 100 db Wired Siren & Flashing Strobe (can be replaced by Buzzers, Bells, Wireless Sirens, Louder Wired Sirens)

Compatible with all DA600+ products !!

Please Note:

There is no limit to how many additional Push Buttons, Wireless Transmitters, Receivers & Sirens that can be added to this system to suit many types of installations.

Transmission Range:

The transmission range from the Wireless Transmitter & Wireless Receiver is an impressive 900 metres (line of sight) which equates to around 400 - 600 metres in most applications, this can be at least doubled by adding the Signal Repeaters (004-2910).

Push Button:

The large Red Push Button would be fitted onto the most suitable location and connected to the battery powered Wireless Transmitter (fitted into an easy to mount ip rated box) by 3 metres of bell cable (which can be lengthened or shortened upon request).

Wireless Receiver:

The Wireless Receiver plugs into a wall socket using a standard 3-pin transformer and can be located up to 900 metres (line of sight) away from the Wireless Transmitter, this Receiver has a built in Chime which is adjustable from OFF to 85 Decibel (ideal for an office).

The Receiver has no battery back up, therefore some installers will choose to add a UPS, part number 010-0660 which will operate the Receiver during a Power Cut.

Siren:

The 100 decibel Siren & Flashing Strobe is connected to the Receiver by 3 metres of Bell Cable (which can be lengthened upon request) and is suitable for installing both Inside or Outside of a building. The duration is adjustable with options of 10, 60 seconds or 5 minutes (5 minutes default), although we can supply a latched relay (part number 010-0560) if you need the Siren to latch on until a member of staff turns it off.

Please Contact Us if you want to discuss the Latched Siren options (as we need to discuss the reset options).

This Siren can be replaced if required, the options include:

  • Louder Wired Sirens.
  • Buzzers.
  • Bells.
  • Wireless Sirens.
  • Flashing LED's.
  • Combination of Above.

Auto-Dialler:

You could also add a GSM or Landline Dialler for use out of hours, click here to view a suitable range of Diallers.

Contact Us for Advice!!

Operation:

When the Push Button is pressed, the Siren will be activated for the set duration or until a member of staff resets the Wireless Receiver.

What's in the box

6 items
  • 1×Large Red Push Button
  • 1×S Transmitter & Mounting Box
  • 1×Plug in Receiver
  • 1×3-pin Plug in Transformer (2-pin available upon request)
  • 1×Wired Siren
  • 2×3 metre Bell Cable

Specifications

47 details

Wireless receiver

Receiver size
160 (W) x 105 (H) x 35 (D) mm
Power supply
15v DC 1amp (3-pin plug in transformer)
ON/OFF button
Yes
Adjustable volume control
Yes
Available channels
4
Max sets of beams per channel
32
Maximum sets of detectors per receiver
128
Output voltage
12v DC
Output voltage duration
1, 10, 60 second & 5 minutes
Built in chimes
Yes (one per channel)
Reminder bleep
Yes (if programmed)
Exit delay
Yes 5 minutes (if programmed)
Frequency
434.6 MHz
Standby current
20 mA
Alarm current
180 mA
Relay rating
24v DC or 120v AC (2 amp)
Wireless working range
900 (line of sight)

Wireless transmitter

Wireless range
900 metres (line of sight)
Power supply
1 x MN21 12v Battery
Push buttons
One
Frequency
433 Mhz
Size
90 x 40 x 15mm
Colour
White, Grey & Red Button
Optional cable connection
Yes

Transmitter mounting box

Material
Plastic
Weatherproof
IP65
External size
195 (L) x 90 (W) x 45 (D) mm
Internal size
133 (L) x 83 (W) x 35 (D) mm

Siren specification

Siren level
100 Decibel
Flashing strobe
Yes
Size
70 x 45 x 120mm
Cable
Twin (3 metres)
Power requirements
12v DC
Colour
Red & White
Internal & External

Push button specification

Weather protection
IP66
Connection
N/O
Base footprint size
83 x 83 mm
Overall height
95 mm
Diameter of push button
95 mm
Mounting holes
4x elongated integral
Mounting flange
Snap-on Chassis
Cable access
M20 Cable Glands (knock out)
Seal
PVC
Contacts
Copper alloy/nickel silver
Operating temperature
–10°C to +65°C
Termination
Screw & Clamp

Compatible accessories
