UltraDIAL 3G GSM Garage Alarm Kit 2

Battery Powered UltraDIAL 3G GSM Garage Alarm Kit 2, designed to help protect your Garage or Workshop, when triggered it will activate up to 3 Sirens (including an external solar powered siren) together with secretly contacting key-holders by Phone & Text.

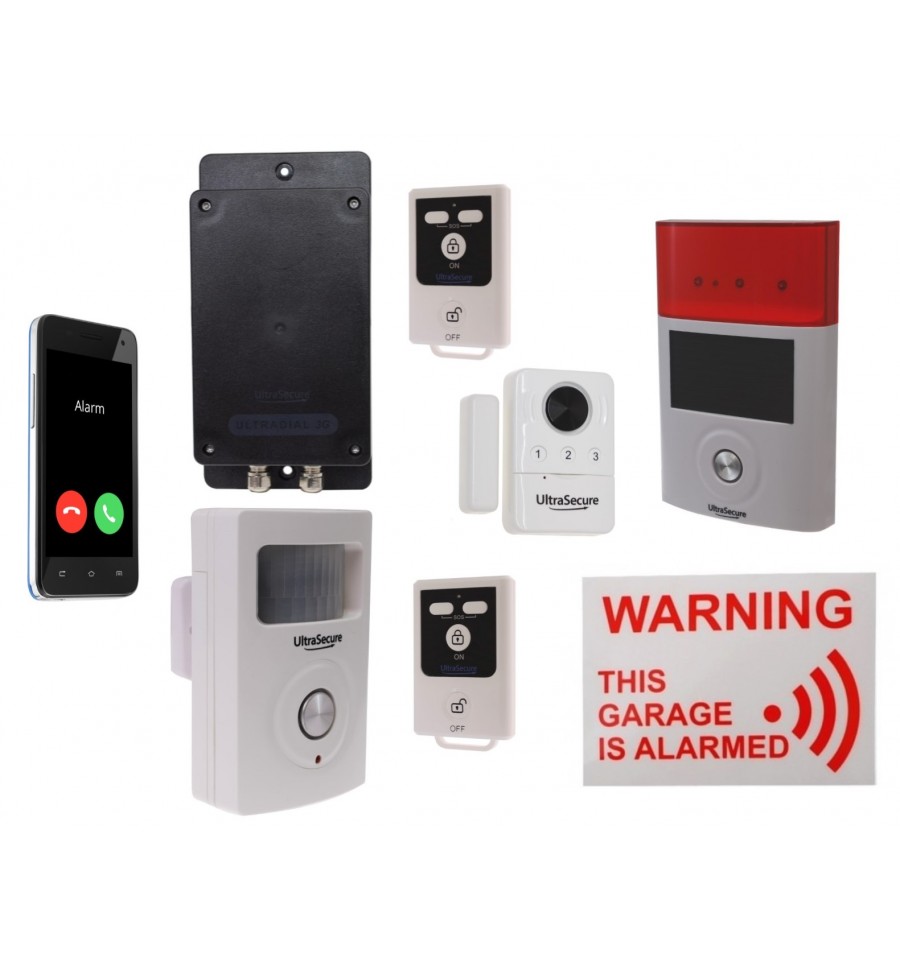

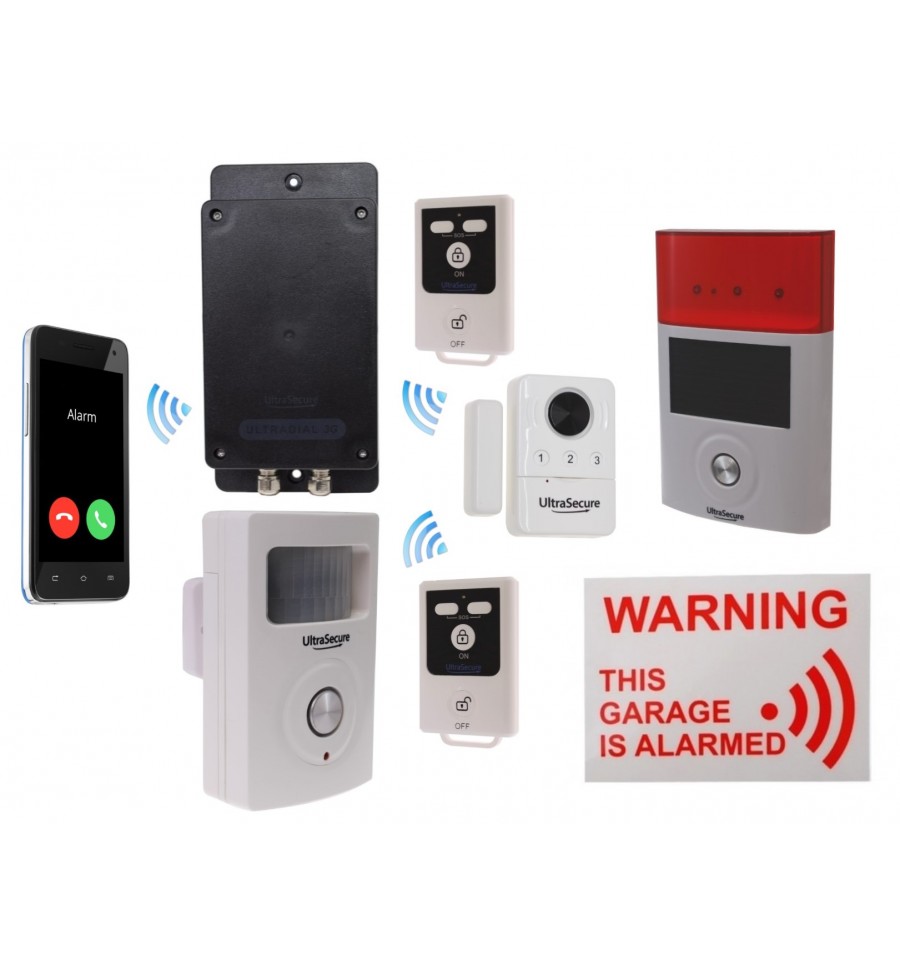

Supplied with:

• 1 x UltraDIAL GSM Alarm Control Panel (designed to silently contact owners by Phone & Text if triggered).
• 1 x Wireless BT PIR (with a built in Siren).
• 1 x Magnetic Door Contact (with a built in optional Siren and can be used with the keypad or Remote Controls).
• 1 x External Wireless Siren (this can be positioned up to 50 metres away).
• 2 x Remote Controls (designed to Arm & Disarm the complete Alarm System).
• 1 x Garage Alarm Warning Window Sticker.

How it Works:

Fit a standard size SIM Card into the UltraDIAL and carry out some very simple programming (manual supplied or see video tab), and decide on a covert location to fit it.

The External Wireless Siren can be fitted onto a building up to 50 metres away.

The Wireless Magnetic Contact is fitted onto a Door & Door Frame with double sided tape & screws supplied.

The Wireless BT PIR would normally be fitted into the corner of the Garage using two screws supplied.

The complete Alarm System is Armed & Disarmed using either Remote Control supplied (from up to 100 metres away) or by using the small keypad on the Magnetic Door Contact.

If triggered the Alarm will activate relevant Sirens and will also contact up to three key-holders by Phone & Text (either can be turned off if preferred).

All batteries are supplied for the Alarm Kit.

A very simple and affordable GSM Wireless Garage Alarm Kit !!

Communication:

The Alarm communicates via the mobile phone networks (sim card required), and uses a standard size (not micro) SIM Card (PAYG or Contract). It will contact up to three key-holders by Telephone (with your own pre-recorded message) & Text Message when activated.

Wireless Door & Window Contact:

The Magnetic Contacts would be fitted onto the Door/Window with the Magnet being fitted onto the frame, when the Door/Window is closed both parts would ideally be within 5 mm of each other (for some installations you may choose to install the two components in the opposite way). When the Door/Window is opened, the Contact will send a Wireless signal up to 100 metres to the UltraDIAL Alarm.

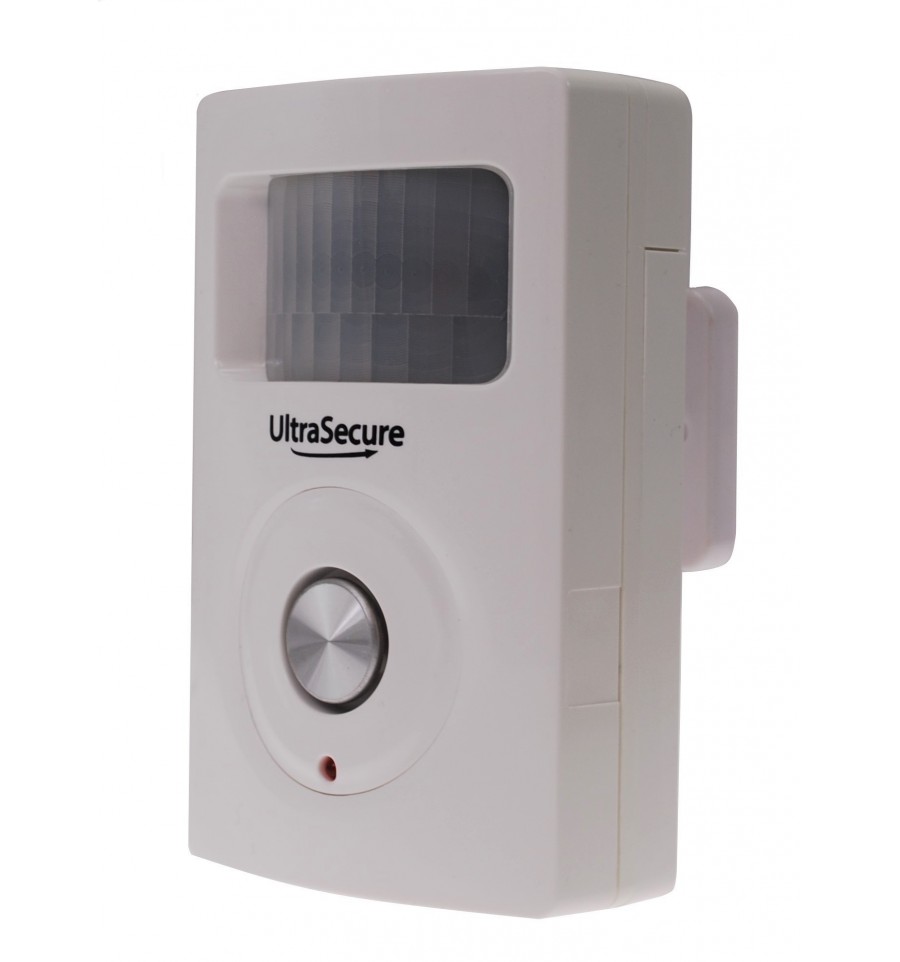

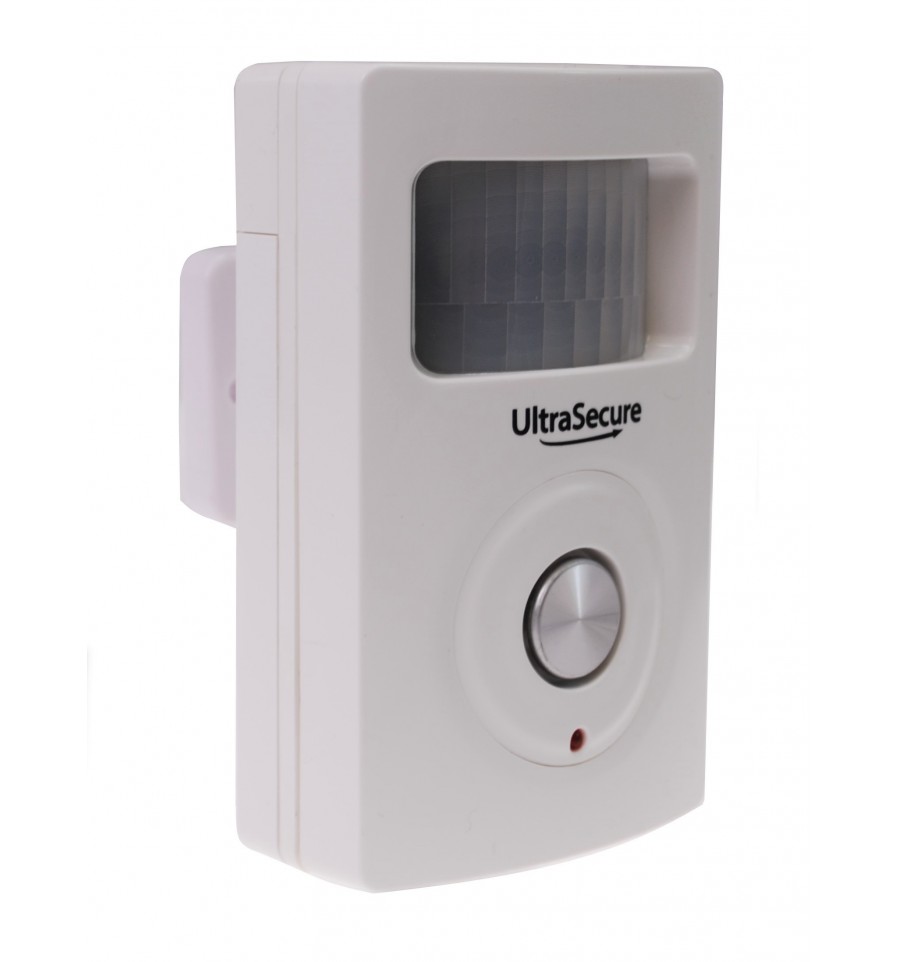

PIR:

The PIR has a built in 130 Decibel Siren will sound for 60 seconds when activated, but still remain fully armed (so will trigger again if the intruder is still present or re-enters the building.

It has a 30 second exit delay (plenty of time to leave the building and lock up) and a 5 second entry delay (normally disarmed from outside the building before entering).

It has a 8 metre distance, 120 degrees horizontal & 90 degrees vertical detection pattern and is powered by 3 x AA batteries (supplied).

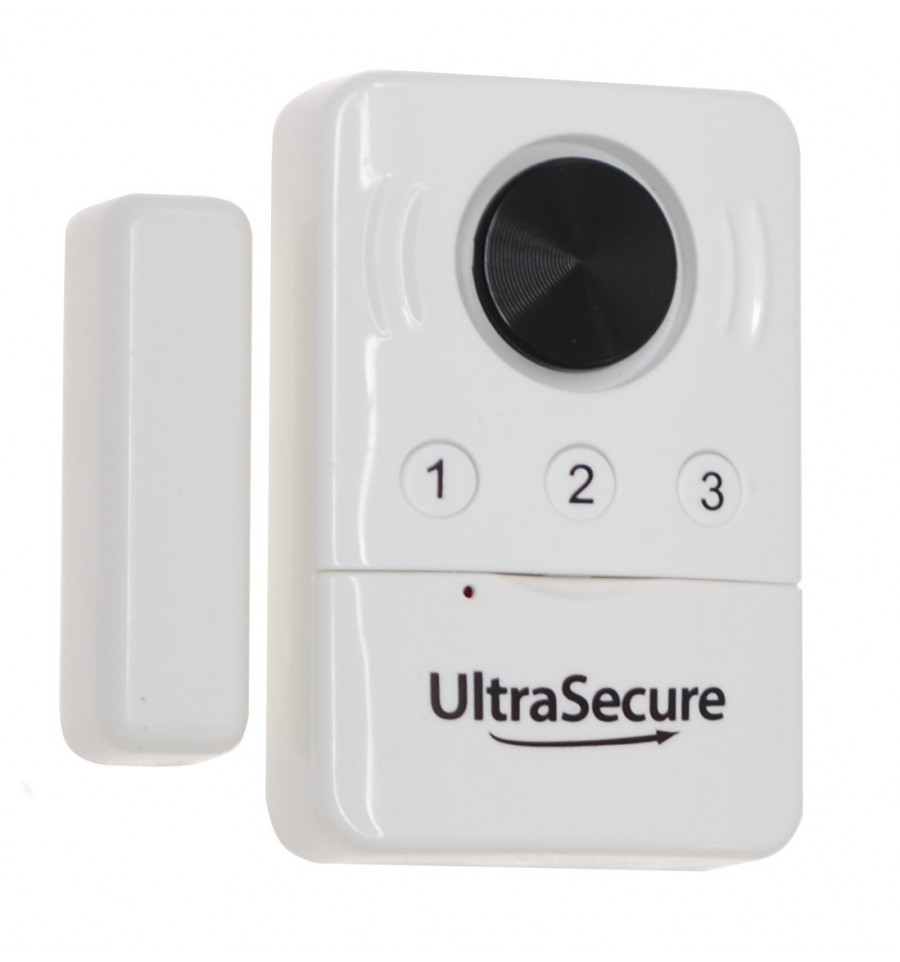

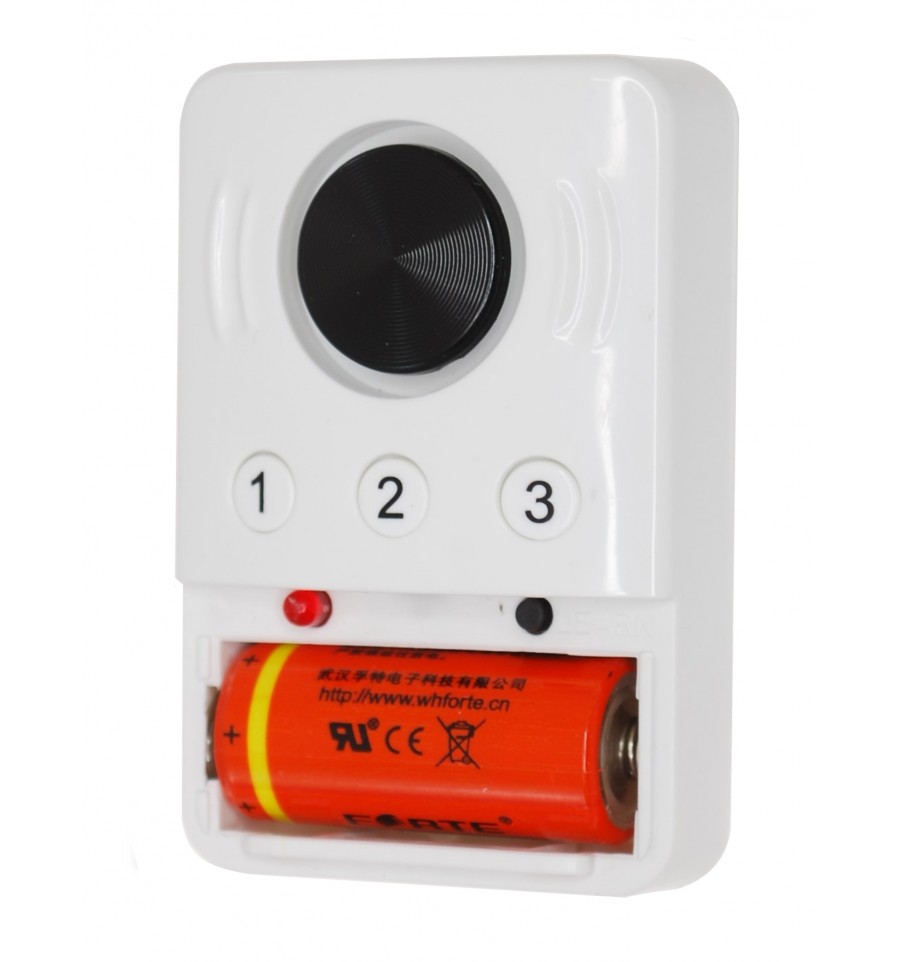

Magnetic Contact:

The Wireless Door & Window Contact has a host of features including:

• Built in Keypad (can be used to Arm & Disarm).
• Can be Armed & Disarmed by the Remote Controls in the kits.
• Optional built in 130 decibel Siren (can be turned off) operates for 30 seconds.
• Optional Door left Open 'Beep' mode (whilst in disarm mode).
• Optional Door left Open 'Alarm' mode (whilst in Armed state).
• Optional Door Open & Close 'Test' mode (30 second reset time).
• Easy to Fit Magnet.
• It can also be used as a stand-alone Alarm.

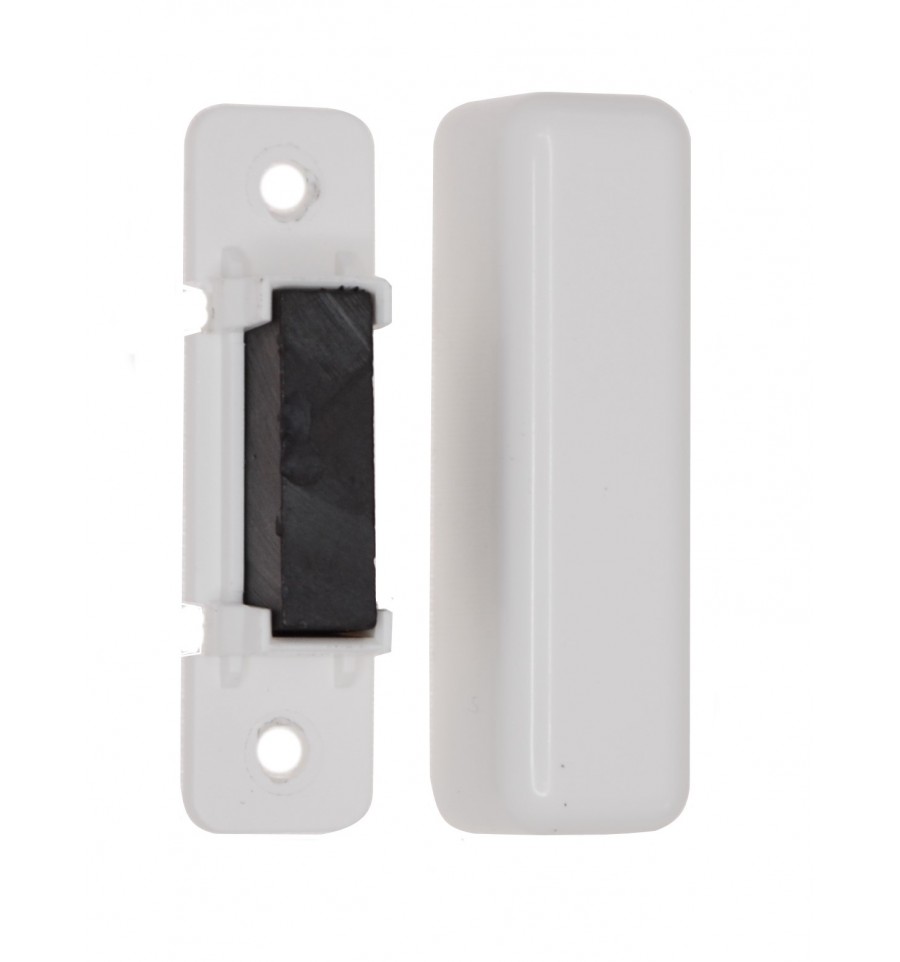

It is supplied in two parts, one is the Wireless Switch and the other is a Magnet, both parts would be fitted onto the Door/Window & Frame in such a position that when closed both parts are nearly touching.

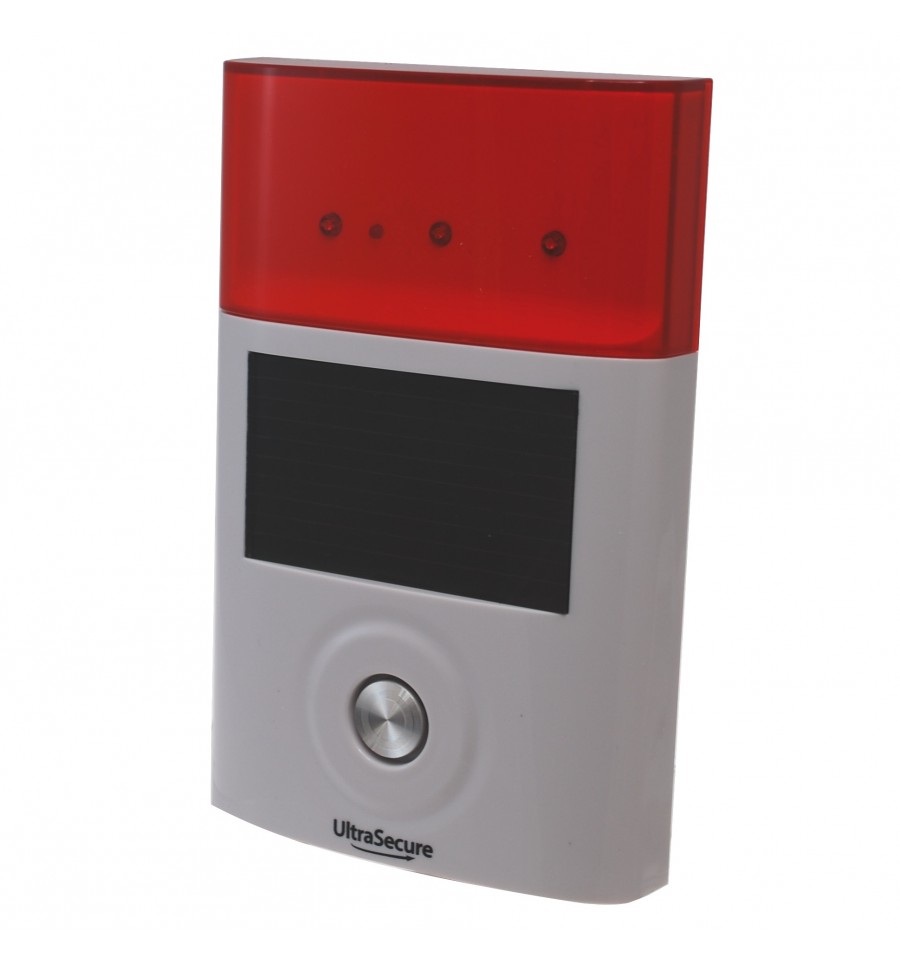

External Solar Siren:

The External Wireless Siren comes supplied with a built in lithium battery which is charged and maintained by the solar panel, however you can choose to fit alkaline batteries inside the Siren should you want to fit it inside or in a shady location.

Additional Detectors & Sirens:

If you want to expand the Alarm, you can add the additional Detectors to it as shown below:

• Wireless Door Contacts (007-0260).
• UltraPIR set to Silent and not using the SIM Card function (007-1150).
• UltraPIR with Hood set to Silent and not using the SIM Card function (007-1400).
• Pressure Mat (007-0640).
• Indoor Battery Siren (007-0230).
• Outdoor Solar or Battery Siren & Strobe (007-0221).
• Standard PIR (007-0200).
• Standard PIR with Hood (007-1410).

Additional Buildings:

The wireless operating range of 100 metres (line of sight) between the accessories and the UltraDIAL equates to around 40 - 50 metres in many applications, which allows various buildings to be protected at the same time, many customers will cover two, three or even four buildings with this Alarm.

Arming & Disarming:

The Alarms are Armed & Disarmed by using the Remote Controls (supplied) from up to 100 metres away, up to 9 Remote Controls can be used with each Alarm.
If the UltraDIAL Alarm is powered by the external 5v power source, then it is possible to Arm & Disarm the Alarm via SMS (text message).There is a 30 second Exit Delay built into the Alarm for easy use.

Contacting Key-holders:

The Alarm will contact between 1 & 3 key-holders (depending on how you have chosen to program the alarm) by Telephone & SMS (either can be turned off whilst programming the alarm) when activated.

It will normally take take between 30 - 60 seconds to call the first key-holder when powered by battery, and quicker when powered by a plug in transformer or usb cable (this can vary depending on the mobile phone networks at the time).

Recording Message:

You can record a 30 second message into the Alarm, which will be replayed to the key-holders when the Alarm calls them.

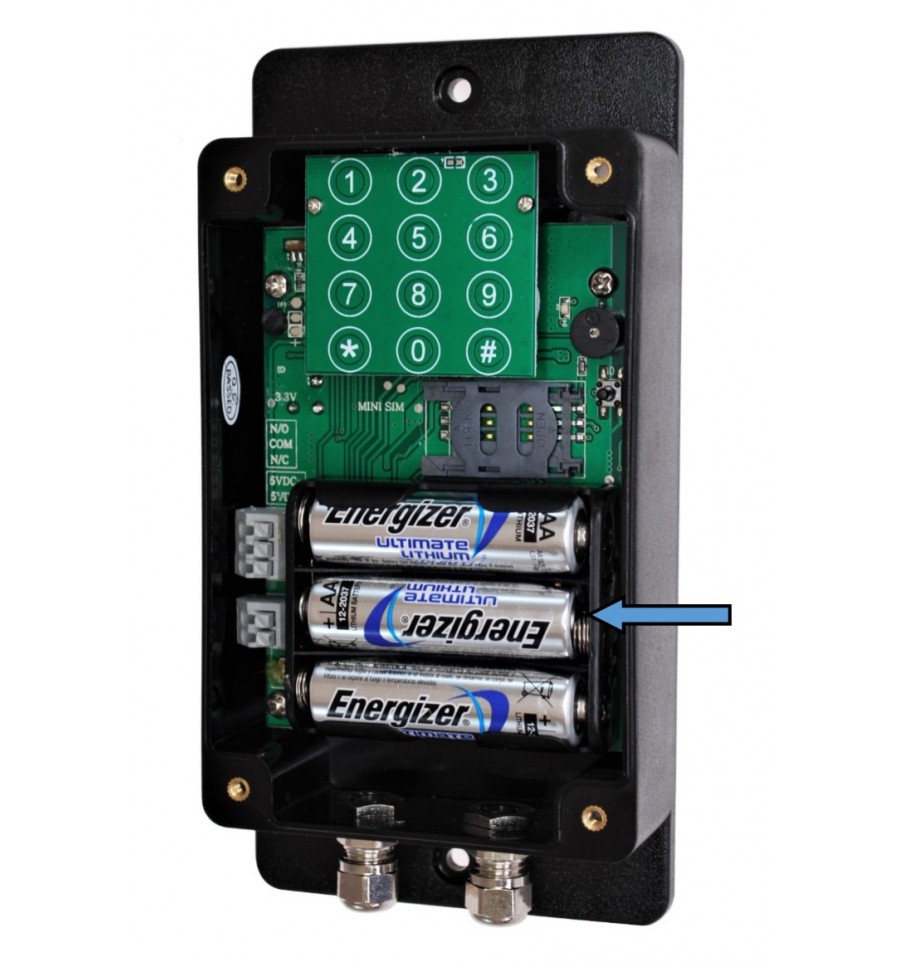

Power Supply:

The UltraDIAL Alarm is powered by 3 x Lithium AA Batteries (supplied) which will last around 6 months in most applications, it can also be powered by a 5v Plug in Transformer or USB Cable where a power supply is available. If the power supply is used, the batteries can be kept in the Alarm as a backup although they will not be charged by the device.

The BT PIR (007-0200) is powered by 3 x AA Duracell Batteries.

Receiving a Call:

When the Alarm calls the key-holders, there is the choice to:

• Listen to your pre-recorded message and do nothing (the alarm will contact the other key-holders).
• Listen to your pre-recorded message and press # on your telephone (this will disarm the UltraDial and prevent it from calling further key-holders).
• Listen to your pre-recorded message and press * on your telephone (this will prevent it from calling further key-holders, but keep the Alarm fully armed (ready for further activations).

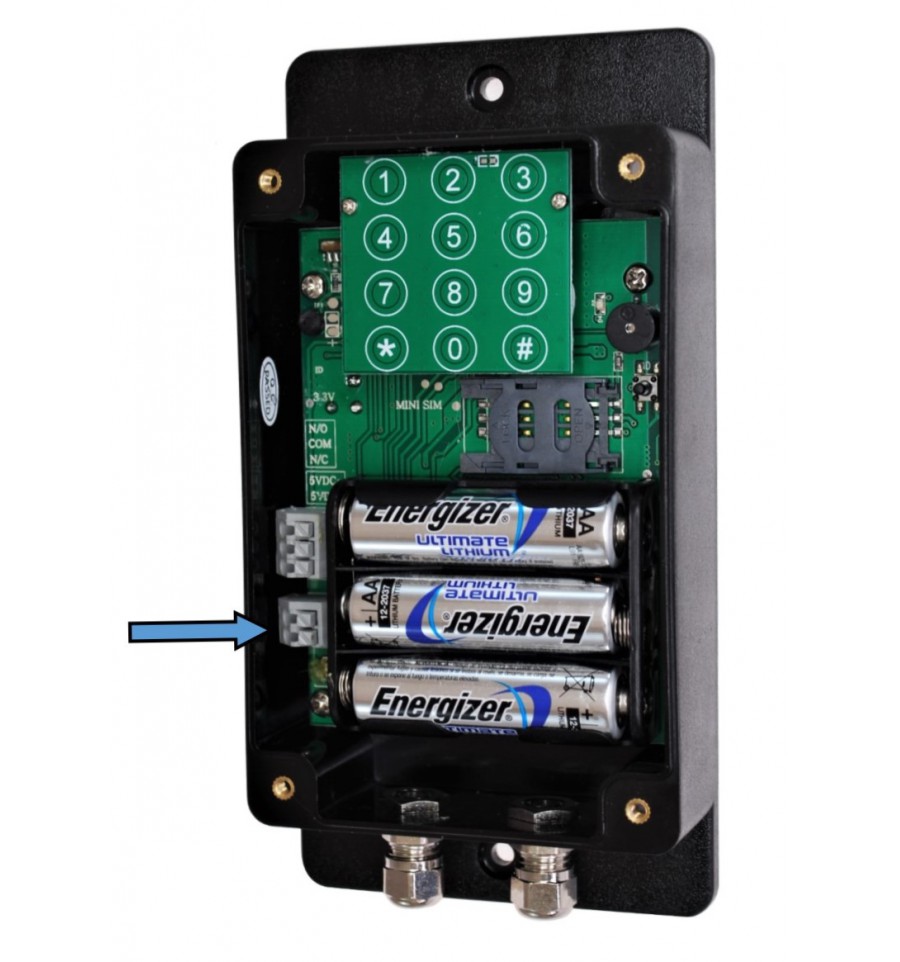

Wired Alarm Detectors:

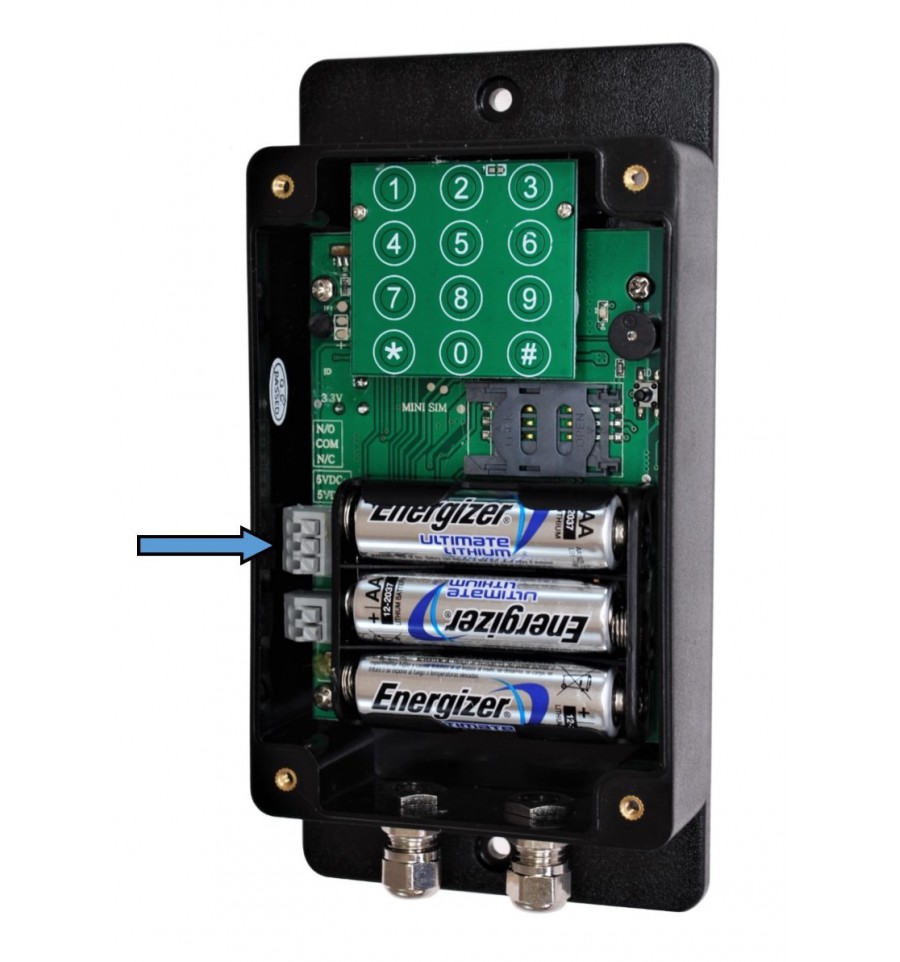

The UltraDIAL has one momentary volt free Inputs, 1 x N/O or N/C, these can be used with many types of devices, examples listed below:

Normally Open going Closed:

• Water & Flood Sensors.
• Alarm Panel.
• Perimeter Beam.
• Pressure Mat.
• Tilt Switch.

Normally Closed going Open:

• Door Contact.
• Gate Contact.
• Alarm Panel.
• Pressure Mat.
• Tilt Switch.

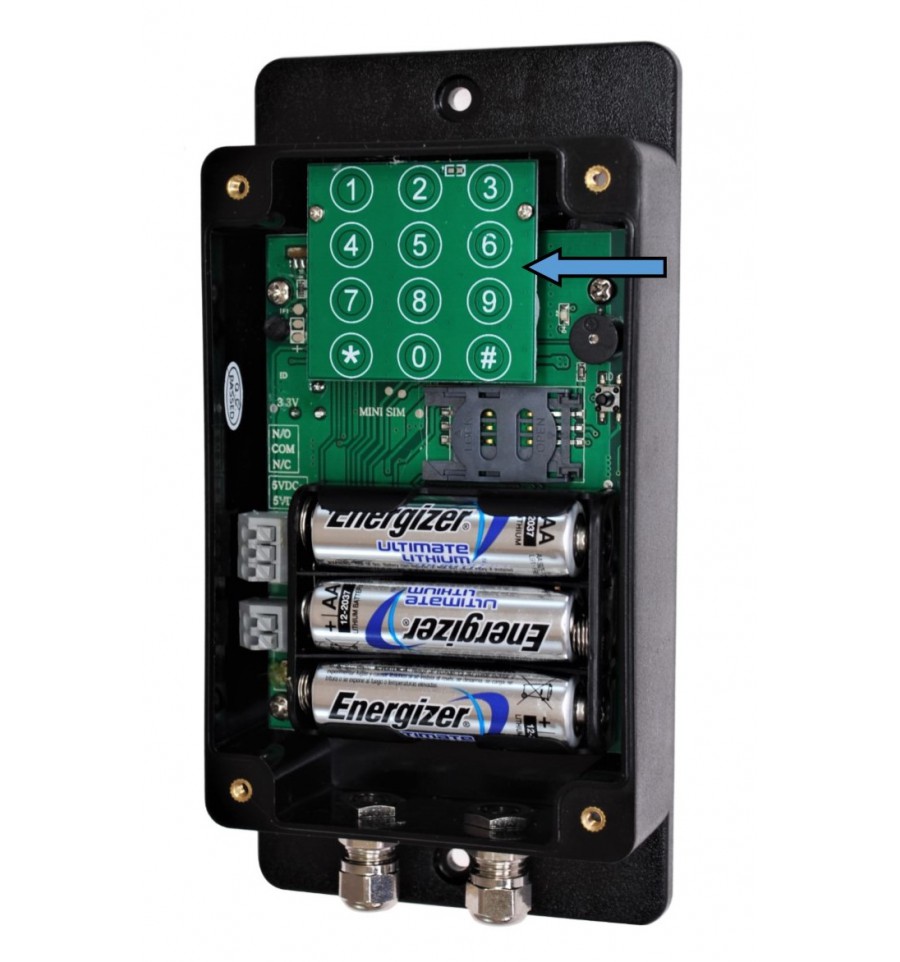

Easy Programming:

The UltraDIAL is very easy to program, probably the easiest GSM Alarm to program on the market today by using the small built in keypad, following some very simple instructions.

Weatherproof:

The UltraDIAL is fully weatherproof and rated at IP66, so can be used in most locations, it is not however designed to be submerged.

Low Battery:

The UltraDIAL Alarm will send the primary key-holder a SMS (text message) if the batteries are getting low.

Weekly Report:

The Alarm can be programmed to send you a status report once a week at 9am, this function can is optional and doesn't have to be used.

Mains Power Failure:

When the Alarm is being powered by an external 5v power supply, it will send the primary key-holder a SMS (text message) in the event of a Power Cut together with another when the power comes back on (provided you also have batteries fitted).

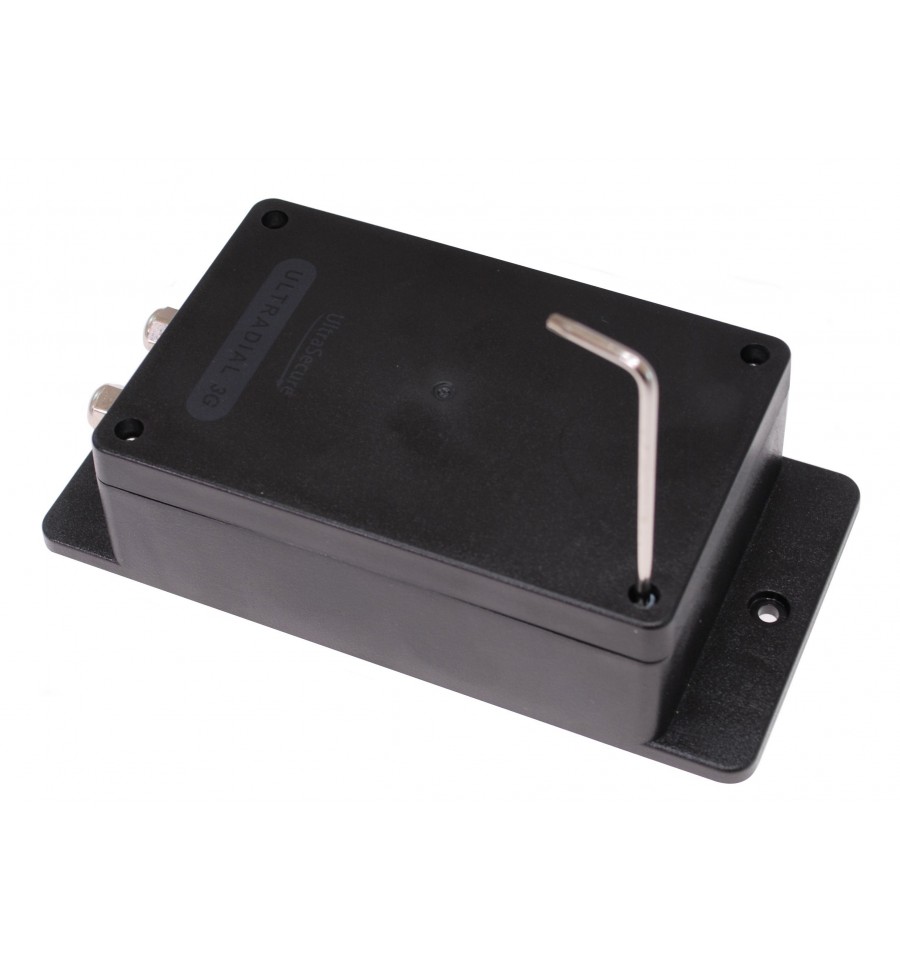

Security Screws:

The lid is fitted with 4 x security screws and a tool is supplied as standard.

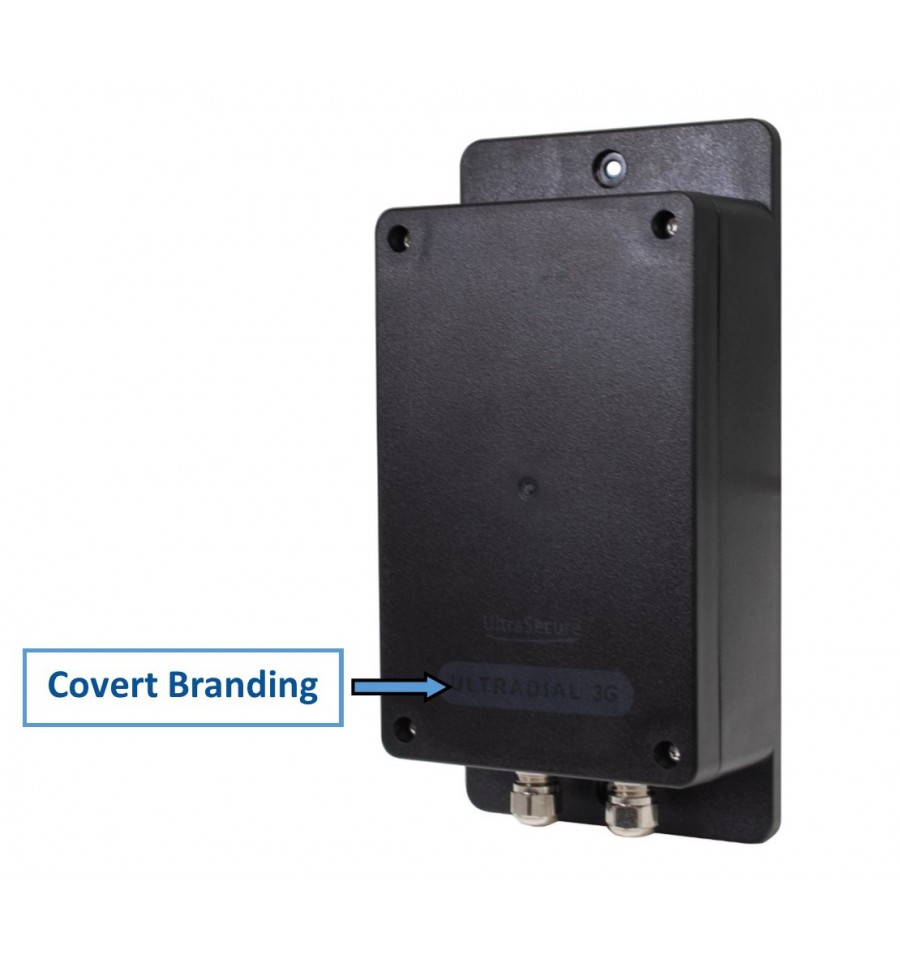

Covert Branding:

Due to the fact that we believe this Alarm should be used as a Covert Alarm and hidden safely away from sight and reach whenever possible, we have kept the branding low key.

The UltraDIAL is a unique & versatile Battery GSM Alarm that can be used in many types of applications:

Communication:

The Alarm communicates via the mobile phone networks (sim card required), and uses a standard size (not micro) SIM Card (PAYG or Contract).

We recommend purchasing a SIM Card in Ireland.

This is a very versatile Security device ideal for many applications designed by Ultra Secure Direct.

If you need advice, please Contact Us !!

Need Advice on choosing the best System for your personal application or Help after you have Purchased one, then please contact

us by:

Telephone: We are still available in the old fashioned way, give us a call on 01604 589414 or 01604 758438 to talk to a real person, we are happy to give you Friendly, No Obligation advice (lines open 8am - 5.00pm Monday - Friday).

Email: If you don't have time to call us, then send us an email to info@ultrasecuredirect.com.


Personal Visit: Some customers find it far easier to come and meet us for a Friendly, No Obligation Consultation (click here for full details).

• 1 x UltraDIAL 3G GSM Alarm.
• 3 x AA Lithium Batteries.
• 2 x Remote Controls.
• 1 x Manual.
• 1 x Magnetic Door/Window Contacts with optional Siren (with battery).
• 1 x BT Wireless PIR & Batteries.
• 1 x Wireless External Siren.
• 1 x This Garage is Alarmed Window Sticker.

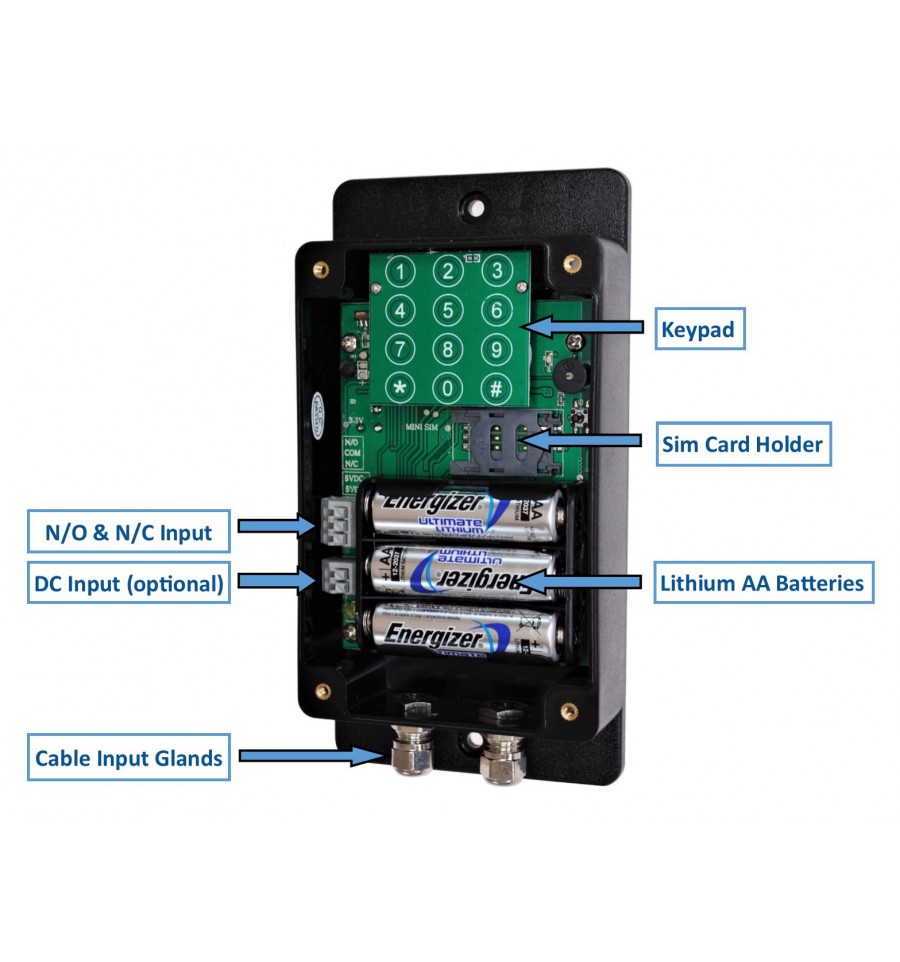

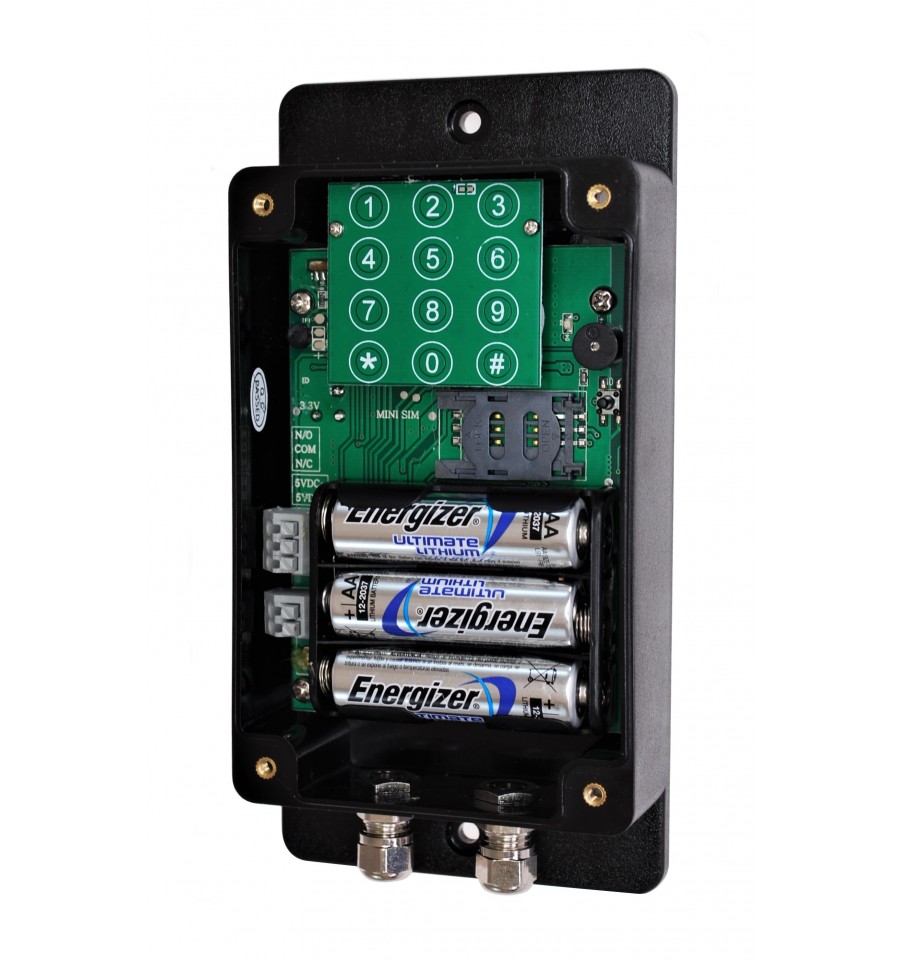

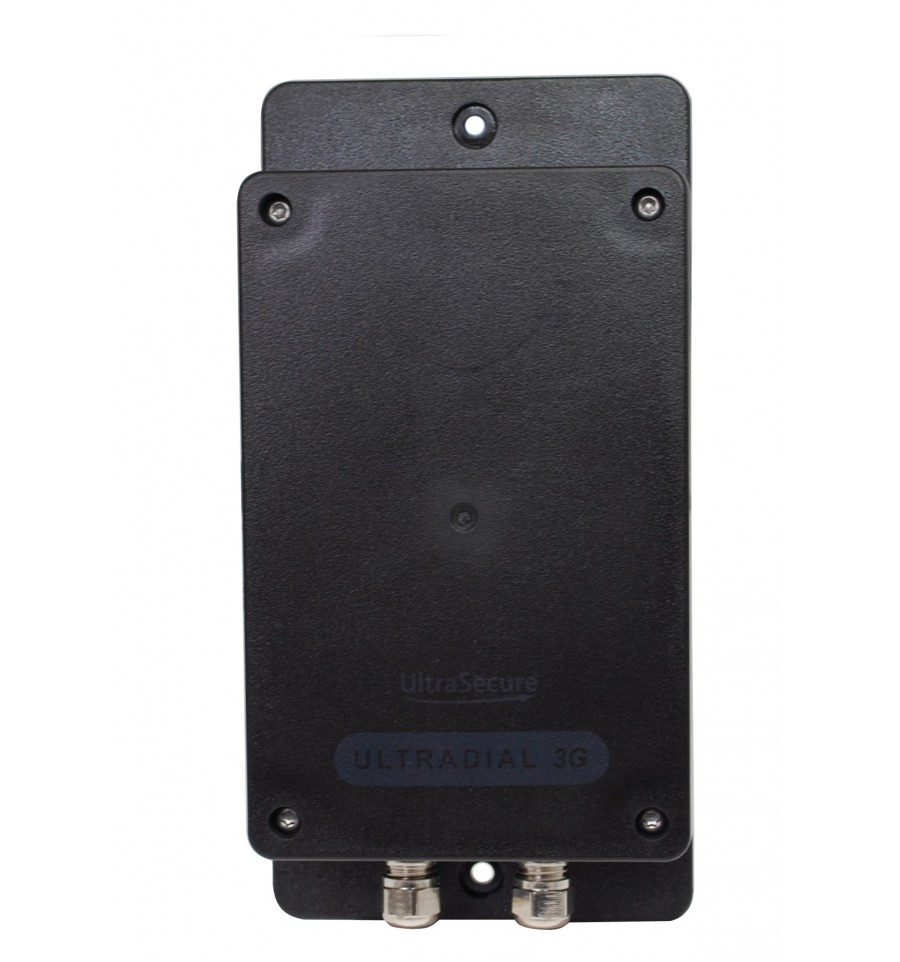

UltraDIAL:

• Battery Power: 3 x Lithium AA Batteries (supplied).
• Battery Life: 6 months in most applications).
• Main Power: Yes (optional 5v DC plug in transformer).
• Programming Method: Easy Built in Keypad.
• Wireless Transmission Range: 100 metres.
• Size: 160 (L) x 82 (W) x 42 (D) mm.
• Colour: Black.
• Wired Inputs: Yes (1 x Volt Free N/O or N/C).
• Cable Entry: 2 x Glands.
• Wireless Inputs: Yes (Wireless PIR's & Door Contacts).
• Wireless Outputs: Yes (Internal & External Sirens, PIR's).
• GSM: Yes (3G).
• SIM Card Required: Yes (standard size).
• Calls Key-holders: Yes (maximum of three, which can be turned off).
• Sends Key-holders SMS: Yes (maximum of three, which can be turned off).
• Built in Siren: No (designed as a covert alarm).
• Mounting Method: 2 x Screw Holes in Flange.
• Weatherproof: Yes (IP66).
• Arming & Disarming Method: Remote Control, Keypad, Receiving A Call.
• Remote Operation on Battery: Yes (# to Disarm, * to Stop & Remain Armed).
• Remote Operation on Mains:  Yes (# to Disarm, * to Stop & Remain Armed, SMS to Arm, SMS to Disarm).
• Power Failure Notification: Yes (when used with a plug in transformer).
• Weekly Status Report: Yes (can be turned off).
• Low Battery Notification: Yes (to primary key-holder).
• Recording Message: Yes (this will be replayed to the key-holders when the alarm calls them).

BT PIR:

• Alarm Detection Type: PIR (passive infrared detector).
• Arming & Disarming Method: Remote Control.
• Working Distance between PIR & Remote Control: 50 metres (line of sight).
• Transmission Distance to additional Wireless Sirens: 50 metres (line of sight).
• Built in Siren: Yes (130 decibels).
• Exit Delay: Yes (30 seconds).
• Entry Delay: Yes (5 seconds).
• Siren Duration: 60 seconds (remains fully armed, until disarmed by remote control).
• Detection Range: 8 metres.
• Detection Horizontal Coverage: 120 Degrees.
• Detection Vertical Detection: 90 Degrees.
• PIR Power Supply: 3 x AA Batteries (supplied).
• Remote Control Power Supply: 1 x 3v Lithium Coin Battery.
• Size of PIR: 68 (W) x 108 (H) x 36 (D) mm.
• Size of Remote Control: 75 (H) x 45 (W) x 12 (D) mm.
• PIR Battery Life: 12 - 18 months (normal use).
• Warranty: 1 Year.

Magnetic Contact:

• Wireless Operation with UltraPIR Alarms: Yes.
• Wireless Operation with UltraDIAL Alarms: Yes.
• Wireless Operation with BT PIR Alarms: Yes.
• Wireless Range: 100 metres (line of sight).
• Internal Siren: Yes 130 Decobel (optional, can be turned ON or OFF).
• Duration of Siren: 30 seconds.
• Keypad To Arm: Yes (press 3).
• Keypad To Disarm: Yes (code + 3).
• Change Code Option: Yes.
• Size of Contact: 60 (H) x 40 (W) x 15 (D) mm.
• Size of Magnet: 45 (H) x 13 (W) x 13 D) mm.
• Power Supply: Battery (1 x 3.6v Lithium 2AA size Battery).
• Colour: White.
• Open Door Beep: Yes Optional (when disarmed).
• Open Door Siren: Yes Optional (when armed).
• Test Mode: Yes (beep on open & close with 30 second reset.
• Stand-alone Operation: Yes.
• Frequency to Wireless Sirens 868 Mhz.

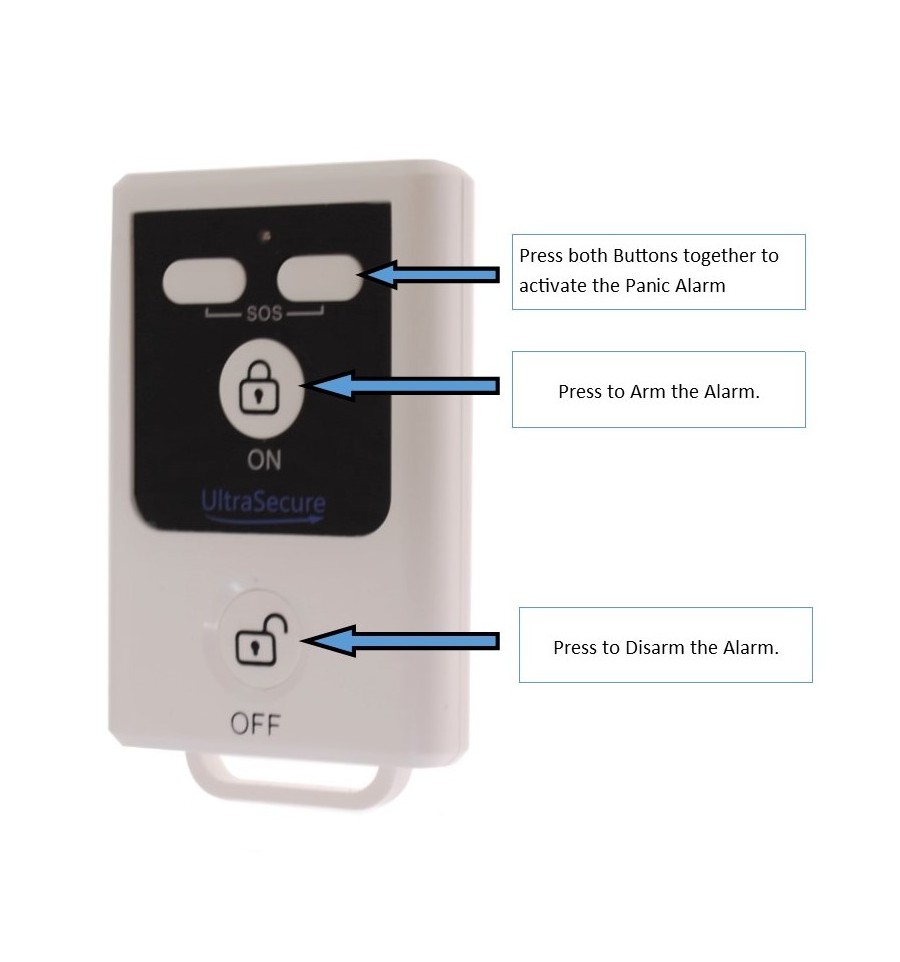

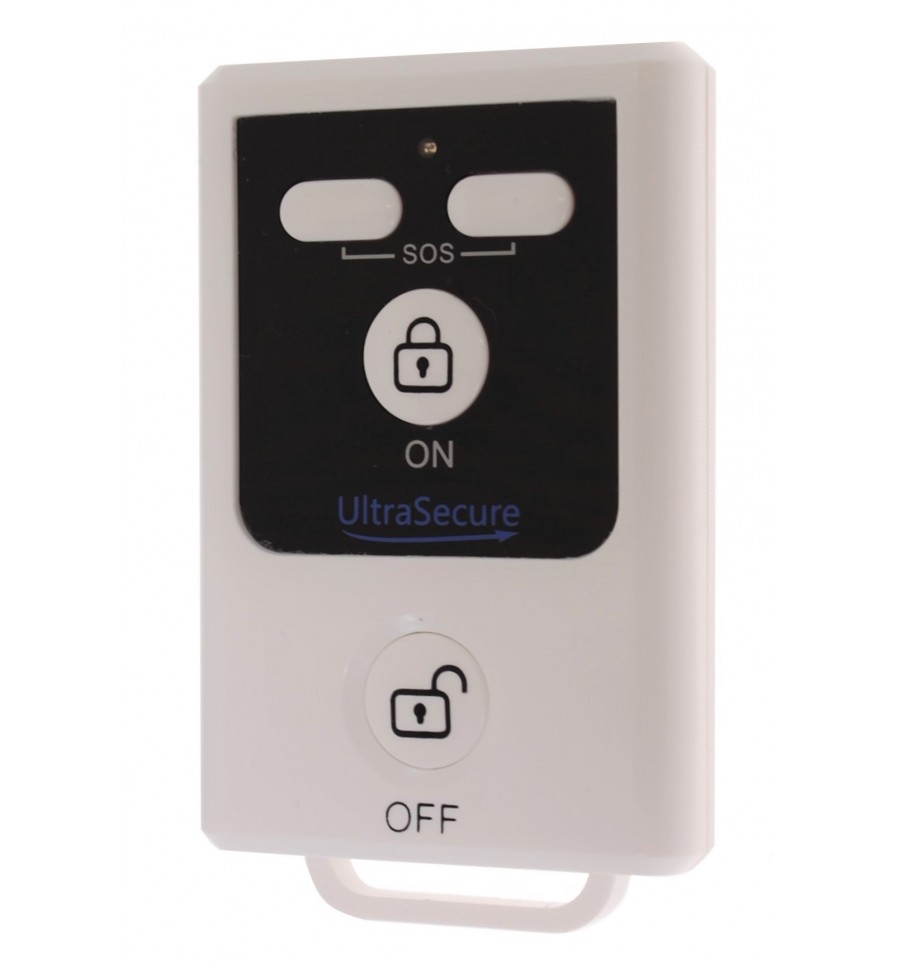

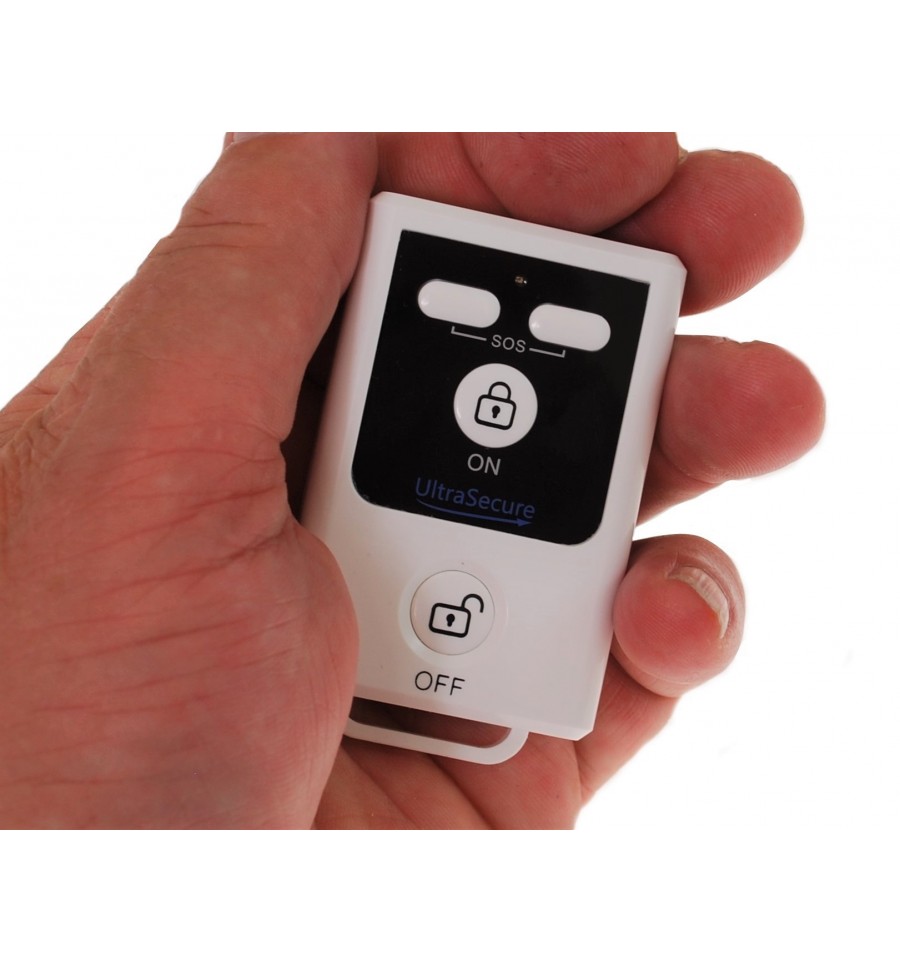

Remote Control:

• Operating Range: 100 metres (line of sight).
• Arm & Disarm Function: Yes (BT, UltraPIR & UltraDIAL Alarms).
• SOS Function: Yes (UltraDIAL).
• Size: 65 x 40 x 12 mm.
• Key Ring Slot: Yes.
• Battery:1 x CR2032H.

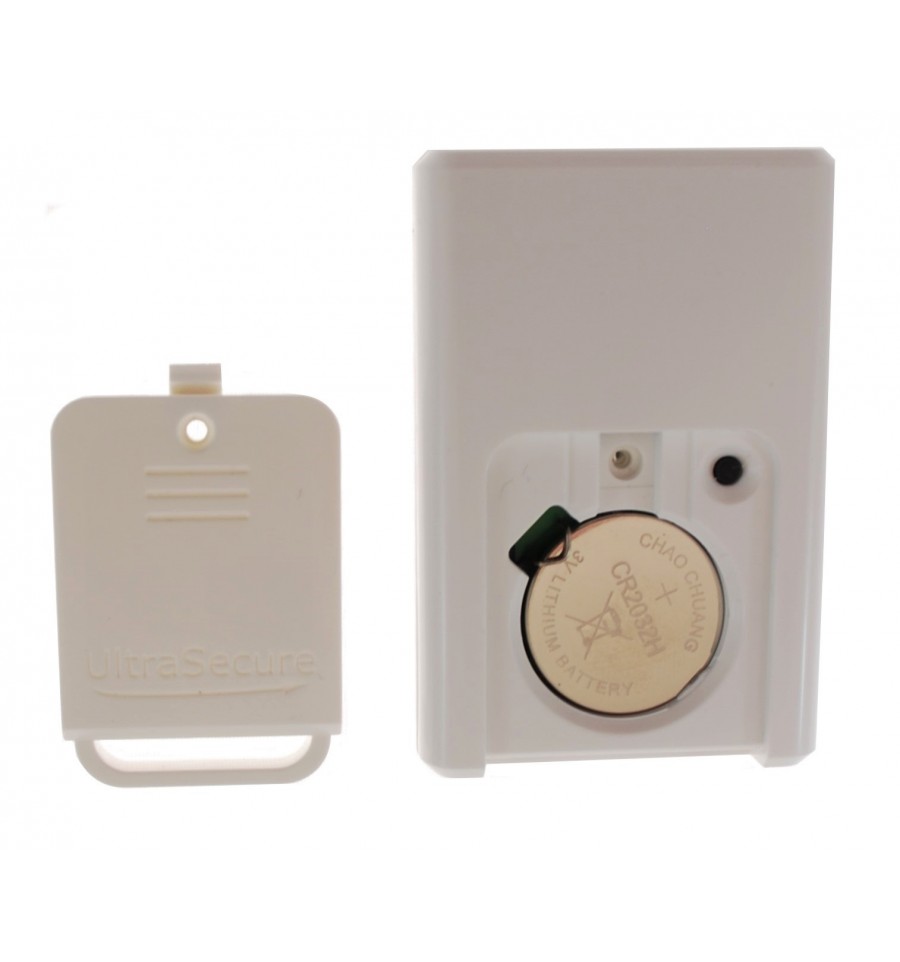

• Pairing Button Location: Inside Battery Cover.
• Colour: White & Black.

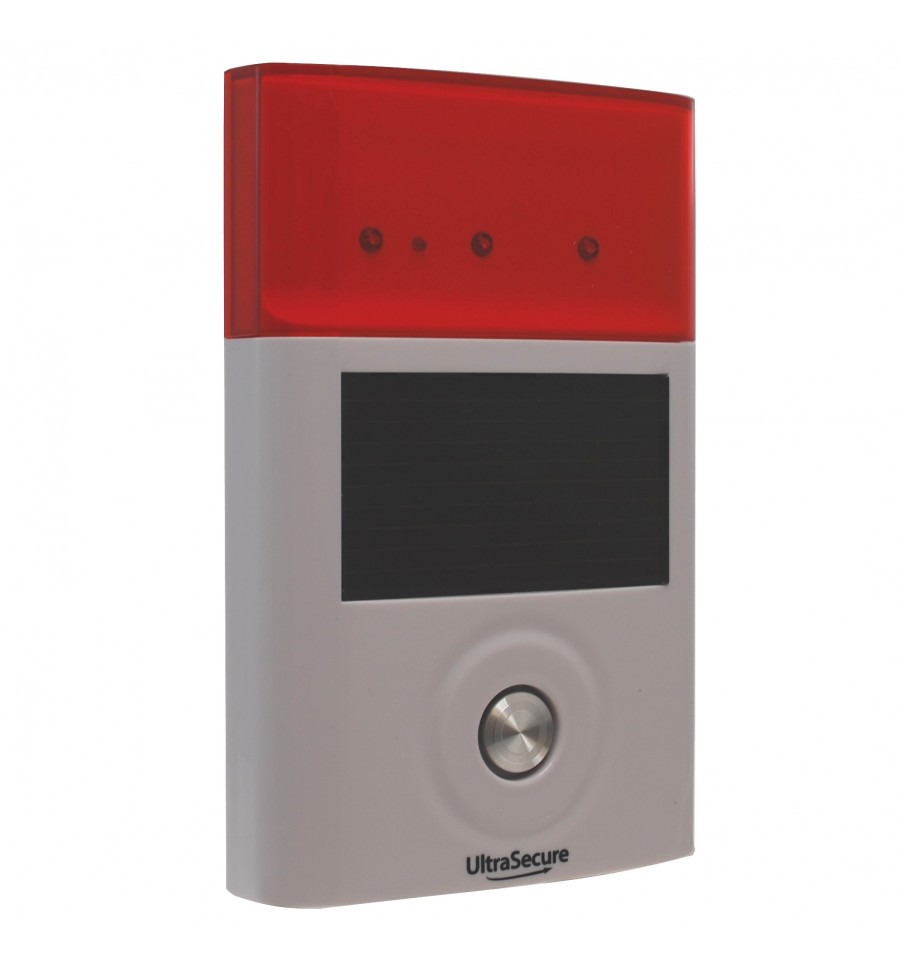

External Siren:

• Built in Siren: 130 Decibel.
• Siren Duration: 3 minutes.
• Built in Flashing Strobe: Rapid (activation).
• Power Supply: 1 x Built in 3.7v / 450 mA Lithium Battery (supplied).
• Optional Battery: 4 x Alkaline AA Batteries (for low level light locations).
• Battery Life of Alkaline Batteries: 9 - 12 months low light applications (normal use).
• Weatherproof: Yes (IP-65).
• Anti-Tamper Switch: Yes.
• Line of Sight Wireless Range: 50 metres (2G UltraPIR), 100 metres (3G UltraPIR).
• Size: 110 (W) x 170 (H) x 28 (D) mm.
• Warranty: 1 year.

Garage Sticker:

• Self Adhesive on the front of the label designed to fit inside a window.
• Size: 80 (W) x 60 (H) mm.
• Colour: Red Print on White Background.
• Wording: This Garage is Alarmed.
