Battery 4G GSM UltraDIAL Door Contact & PIR Alarm

>>>>>>>>>>>>>>>>>>>>

UltraDIAL battery powered 3G GSM Wireless Door/Window & PIR Alarm, this kit will call up to 3 x key-holders by Phone & SMS when triggered together with sounding the Siren built into the PIR, supplied with 1 x Remote Control, 1 x Wireless Magnetic Contact & 1 x BT PIR.

How it Works:

This kit comprises of a battery powered 3G GSM UltraDIAL Covert Alarm Dialler & 1 x battery powered Wireless Magnetic Contact & 1 x PIR (with a built in Siren). The UltraDIAL, Contact & PIR are connected to each other within a unique Wireless Network and are all Armed & Disarmed at the same time using the Remote Controls.

The Magnetic Contact would be fitted onto a Door or Window together with the Magnet being fitted onto the frame (in such as position that both parts are nearly touching when the Door or Window is closed).

The Battery powered Wireless PIR has a built in Siren, and would be fitted into the corner of a suitable room.

If the Door or Window is opened or the PIR detects a person when the Alarm is Armed, they will trigger the UltraDIAL Alarm which will be secretly contacting up to three key-holders by Telephone & SMS together with sounding the Siren in the PIR. Additional Door Contacts & PIR's can be added (no limit).

The secret of using this Alarm is to hide (or lock) away the UltraDIAL in a location where an Intruder wouldn't even know it is there, this is very easy due to the fact it is battery powered and wireless.

This simple Alarm is ideal for so many applications, examples are:

• Narrow Boats Boat (UltraDIAL hidden inside the Boat, Contacts on Front & Rear Doors, PIR inside).
• Workshop, Shed & Garage (UltraDIAL hidden away out of reach).
• Static Caravan (UltraDIAL hidden, Contact on the Doors).
• The list is endless !!

Communication:

The Alarm communicates via the mobile phone networks (sim card required), and uses a standard size (not micro) SIM Card (PAYG or Contract). It will contact up to three key-holders by Telephone (with your own pre-recorded message) & Text Message when activated.

We do offer two Roaming SIM Cards from a third party supplier (at cost) designed for use in Alarms & Tracker Systems, these are low level contract sim cards (working on a direct debit) operating over all the major UK Networks ensuring your Alarm has the best signal available in all locations.

These can be selected within the drop down options near the Add to Card Button.

The two options are our 20 Plan (click here) & 50 Plan (click here), please click the links to read all about them.

You can also purchase the product with no sim card and simply use your preferred supplier (many options are available).

Wireless Door & Window Contact:

The Magnetic Contacts would be fitted onto the Door/Window with the Magnet being fitted onto the frame, when the Door/Window is closed both parts would ideally be within 5 mm of each other (for some installations you may choose to install the two components in the opposite way). When the Door/Window is opened, the Contact will send a Wireless signal up to 100 metres to the UltraDIAL Alarm.

PIR:

The PIR has a built in 130 Decibel Siren will sound for 60 seconds when activated, but still remain fully armed (so will trigger again if the intruder is still present or re-enters the building.

It has a 30 second exit delay (plenty of time to leave the building and lock up) and a 5 second entry delay (normally disarmed from outside the building before entering).

It has a 8 metre distance, 120 degrees horizontal & 90 degrees vertical detection pattern and is powered by 3 x AA batteries (supplied).

Additional Detectors & Sirens:

If you want to expand the Alarm, you can add the additional Detectors to it as shown below:

• Wireless Door Contacts (007-0260).
• UltraPIR set to Silent and not using the SIM Card function (007-1150).
• UltraPIR with Hood set to Silent and not using the SIM Card function (007-1400).
• Pressure Mat (007-0640).
• Indoor Battery Siren (007-0230).
• Outdoor Solar or Battery Siren & Strobe (007-0221).
• Standard PIR (007-0200).
• Standard PIR with Hood (007-1410).

Additional Buildings:

The wireless operating range of 100 metres (line of sight) between the accessories and the UltraDIAL equates to around 40 - 50 metres in many applications, which allows various buildings to be protected at the same time, many customers will cover two, three or even four buildings with this Alarm.

Arming & Disarming:

The Alarms are Armed & Disarmed by using the Remote Controls (supplied) from up to 100 metres away, up to 9 Remote Controls can be used with each Alarm.
If the UltraDIAL Alarm is powered by the external 5v power source, then it is possible to Arm & Disarm the Alarm via SMS (text message).There is a 30 second Exit Delay built into the Alarm for easy use.

Contacting Key-holders:

The Alarm will contact between 1 & 3 key-holders (depending on how you have chosen to program the alarm) by Telephone & SMS (either can be turned off whilst programming the alarm) when activated.

It will normally take take between 30 - 60 seconds to call the first key-holder when powered by battery, and quicker when powered by a plug in transformer or usb cable (this can vary depending on the mobile phone networks at the time).

Recording Message:

You can record a 30 second message into the Alarm, which will be replayed to the key-holders when the Alarm calls them.

Power Supply:

The UltraDIAL Alarm is powered by 3 x Lithium AA Batteries (supplied) which will last around 6 months in most applications, it can also be powered by a 5v Plug in Transformer or USB Cable where a power supply is available. If the power supply is used, the batteries can be kept in the Alarm as a backup although they will not be charged by the device.

The BT PIR (007-0200) is powered by 3 x AA Duracell Batteries.

Receiving a Call:

When the Alarm calls the key-holders, there is the choice to:

• Listen to your pre-recorded message and do nothing (the alarm will contact the other key-holders).
• Listen to your pre-recorded message and press # on your telephone (this will disarm the UltraDial and prevent it from calling further key-holders).
• Listen to your pre-recorded message and press * on your telephone (this will prevent it from calling further key-holders, but keep the Alarm fully armed (ready for further activations).

Wired Alarm Detectors:

The UltraDIAL has one momentary volt free Inputs, 1 x N/O or N/C, these can be used with many types of devices, examples listed below:

Normally Open going Closed:

• Water & Flood Sensors.
• Alarm Panel.
• Perimeter Beam.
• Pressure Mat.
• Tilt Switch.

Normally Closed going Open:

• Door Contact.
• Gate Contact.
• Alarm Panel.
• Pressure Mat.
• Tilt Switch.

Easy Programming:

The UltraDIAL is very easy to program, probably the easiest GSM Alarm to program on the market today by using the small built in keypad, following some very simple instructions.

Weatherproof:

The UltraDIAL is fully weatherproof and rated at IP66, so can be used in most locations, it is not however designed to be submerged.

Low Battery:

The UltraDIAL Alarm will send the primary key-holder a SMS (text message) if the batteries are getting low.

Mains Power Failure:

When the Alarm is being powered by an external 5v power supply, it will send the primary key-holder a SMS (text message) in the event of a Power Cut together with another when the power comes back on (provided you also have batteries fitted).

Security Screws:

The lid is fitted with 4 x security screws and a tool is supplied as standard.

Covert Branding:

Due to the fact that we believe this Alarm should be used as a Covert Alarm and hidden safely away from sight and reach whenever possible, we have kept the branding low key.

SIM Cards:

The Alarm communicates via the mobile phone networks (sim card required), and uses a standard size (not micro) SIM Card (PAYG or Contract). It will contact up to three key-holders by Telephone (with your own pre-recorded message) & Text Message when activated.

We do offer two Roaming SIM Cards from a third party supplier (at cost) designed for use in Alarms & Tracker Systems, these are low level contract sim cards (working on a direct debit) operating over all the major UK Networks ensuring your Alarm has the best signal available in all locations.

These can be selected within the drop down options near the Add to Card Button.

The two options are our 20 Plan (click here) & 50 Plan (click here), please click the links to read all about them.

You can also purchase the product with no sim card and simply use your preferred supplier (many options are available).

This is a very versatile Security device ideal for many applications designed by Ultra Secure Direct.

If you need advice, please Contact Us !!

Need Advice on choosing the best System for your personal application or Help after you have Purchased one, then please contact

us by:

Telephone: We are still available in the old fashioned way, give us a call on 01604 589414 or 01604 758438 to talk to a real person, we are happy to give you Friendly, No Obligation advice (lines open 8am - 5.00pm Monday - Friday).

Email: If you don't have time to call us, then send us an email to info@ultrasecuredirect.com.


Personal Visit: Some customers find it far easier to come and meet us for a Friendly, No Obligation Consultation (click here for full details).

• 1 x 4G UltraDIAL GSM Alarm.
• 3 x AA Lithium Batteries.
• 2 x Remote Controls.
• 1 x Manual.
• 1 x Magnetic Door/Window Contacts & Battery.
• 1 x BT Wireless PIR & Batteries.

UltraDIAL:

• Battery Power: 3 x Lithium AA Batteries (supplied).
• Battery Life: 6 months in most applications).
• Main Power: Yes (optional 5v DC plug in transformer).
• Programming Method: Easy Built in Keypad.
• Wireless Transmission Range: 100 metres.
• Size: 160 (L) x 82 (W) x 42 (D) mm.
• Colour: Black.
• Wired Inputs: Yes (1 x Volt Free N/O or N/C).
• Cable Entry: 2 x Glands.
• Wireless Inputs: Yes (Wireless PIR's & Door Contacts).
• Wireless Outputs: Yes (Internal & External Sirens, PIR's).
• Operates on 4G, 3G & 2G Networks.
• SIM Card Required: Yes (standard size).
• Calls Key-holders: Yes (maximum of three, which can be turned off).
• Sends Key-holders SMS: Yes (maximum of three, which can be turned off).
• Built in Siren: No (designed as a covert alarm).
• Mounting Method: 2 x Screw Holes in Flange.
• Weatherproof: Yes (IP66).
• Arming & Disarming Method: Remote Control, Keypad, Receiving A Call.
• Remote Operation on Battery: Yes (# to Disarm, * to Stop & Remain Armed).
• Remote Operation on Mains:  Yes (# to Disarm, * to Stop & Remain Armed, SMS to Arm, SMS to Disarm).
• Power Failure Notification: Yes (when used with a plug in transformer).
• Weekly Status Report: Yes (can be turned off).
• Low Battery Notification: Yes (to primary key-holder).
• Recording Message: Yes (this will be replayed to the key-holders when the alarm calls them).
• Frequencies:
• LTE-TDD B38/B40/B41.
• LTE FDD B1/B3/B5/B7/B8/B20/B28.
• UMTS/HSPA+ B1/B8.
• GSM/GPRS/EDGE 900/1800 MHz.

Magnetic Contact:

• Power Supply: CR2 Lithium Battery (included).
• Contact Size: 52 x 32 x 12 mm.
• Magnet Size: 45 x 12 x 14 mm.
• Wireless Range: 100 metres (line of sight).
• Installation Method: Double Sided Tape (supplied).

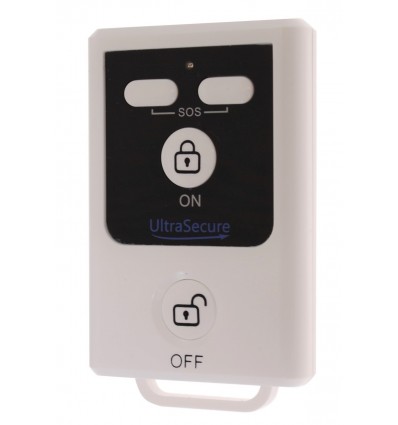

Remote Controls:

• Power Supply: 1 x 3v Lithium Coin Battery.
• Wireless Range: 100 metres (line of sight).
• Operation Option: Arm or Disarm.
• Size: 75 (H) x 45 (W) x 12 (D) mm.
• Battery Life: 1- 2 Years (normal use).
• Warranty: 1 Year.

BT PIR:

• Alarm Detection Type: PIR (passive infrared detector).
• Arming & Disarming Method: Remote Control.
• Wireless Transmission Distance: 100 metres (line of sight).
• Built in Siren: Yes (130 decibels).
• Exit Delay: Yes (30 seconds).
• Entry Delay: Yes (5 seconds).
• Siren Duration: 60 seconds (remains fully armed, until disarmed by remote control).
• Detection Range: 8 metres.
• Detection Horizontal Coverage: 120 Degrees.
• Detection Vertical Detection: 90 Degrees.
• PIR Power Supply: 3 x AA Batteries (supplied).
• Remote Control Power Supply: 1 x 3v Lithium Coin Battery.
• Size of PIR: 68 (W) x 108 (H) x 36 (D) mm.
• Size of Remote Control: 75 (H) x 45 (W) x 12 (D) mm.
• PIR Battery Life: 12 - 18 months (normal use).
• Warranty: 1 Year.
